4CP Wet Film Thickness Gauge – 1 to 80 Mils, Aluminum
Measuring 1-80 Mils and/or 25-2032 Microns
ITEM # WF1300
Promotional Product Distributors Only
Email Purchase Order
Not A Promotional Product Distributor?
Find A Distributor
| 100 (c) | 250 (c) | 500 (c) | 1000 (c) | 2500 (c) | 5000 (c) | |
|---|---|---|---|---|---|---|
| 1 Sided | $5.05 | $3.25 | $2.65 | $2.30 | $2.15 | $2.10 |
| 2 Sided | $5.85 | $3.95 | $3.35 | $3.05 | $2.85 | $2.80 |
• 2 Sided Setup Charge: Add $80.00 (g)
• Pre-production sample: Add $200.00 (g) Standard production time
The pricing is suggested retail pricing. Each distributor may determine their own pricing for resale.
Included

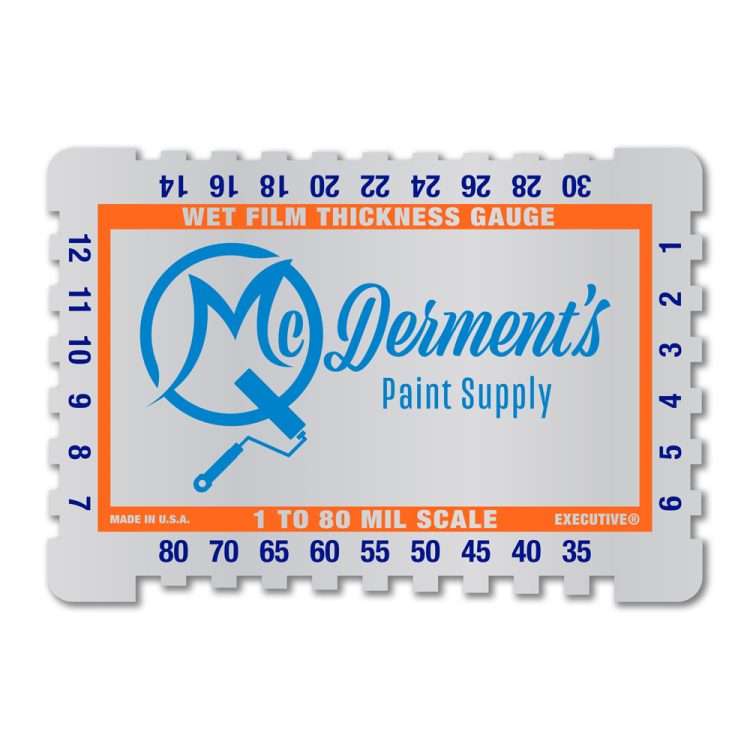

- Wet film thickness gauge with four color process custom imprint on tool

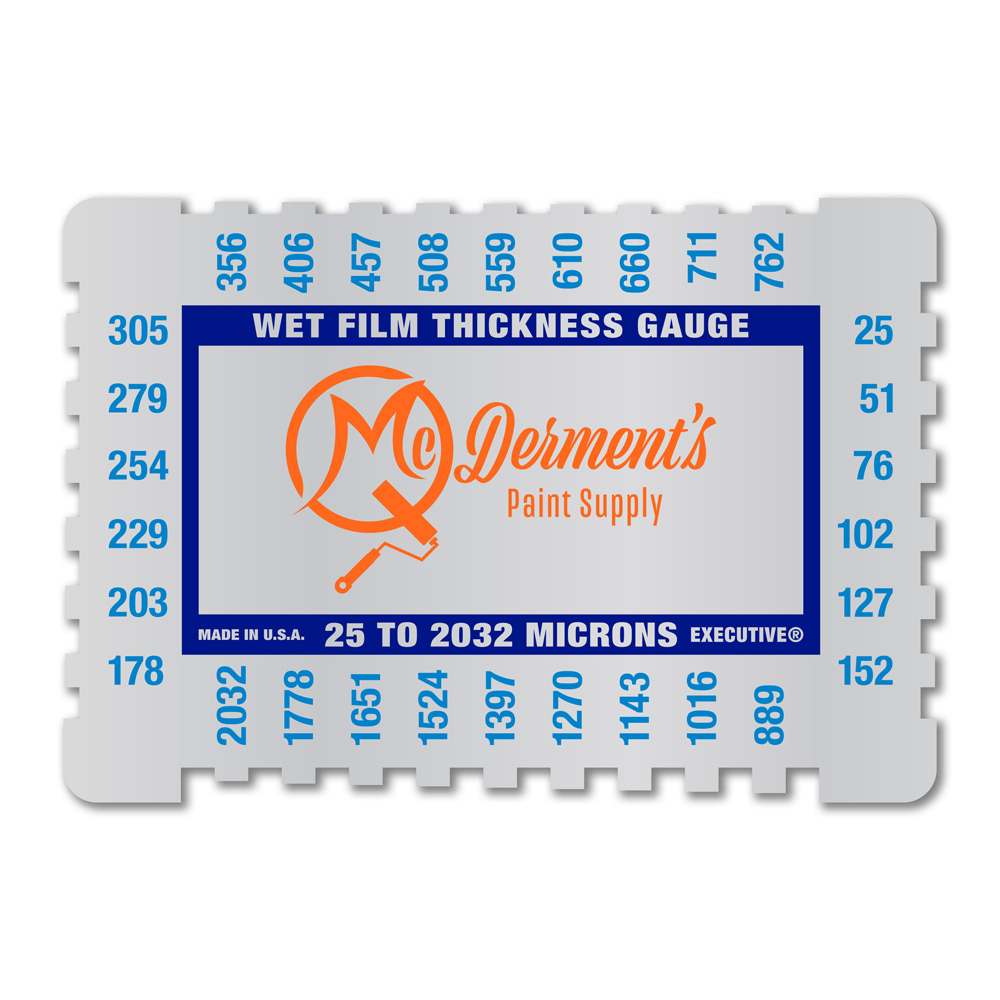

- Choice of 1-80 Mils and/or 25-2032 Microns scale (scales imprinted along with the custom imprint)

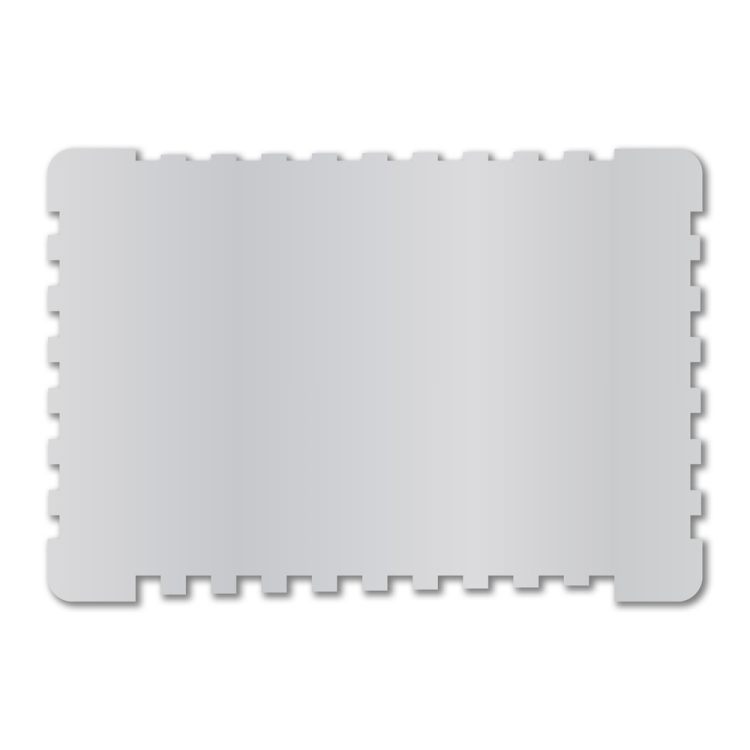

- 1 Sided option includes four color process imprint on front only, with no measurements or custom imprint on back

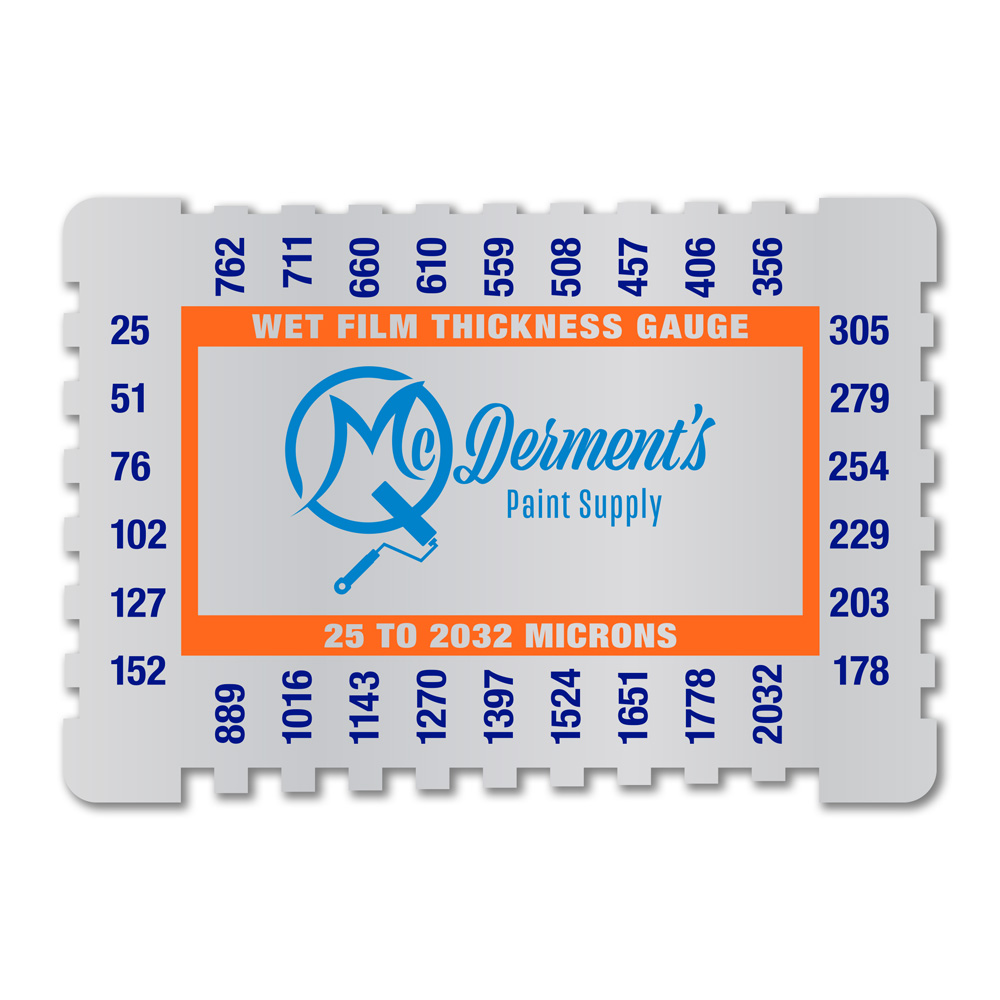

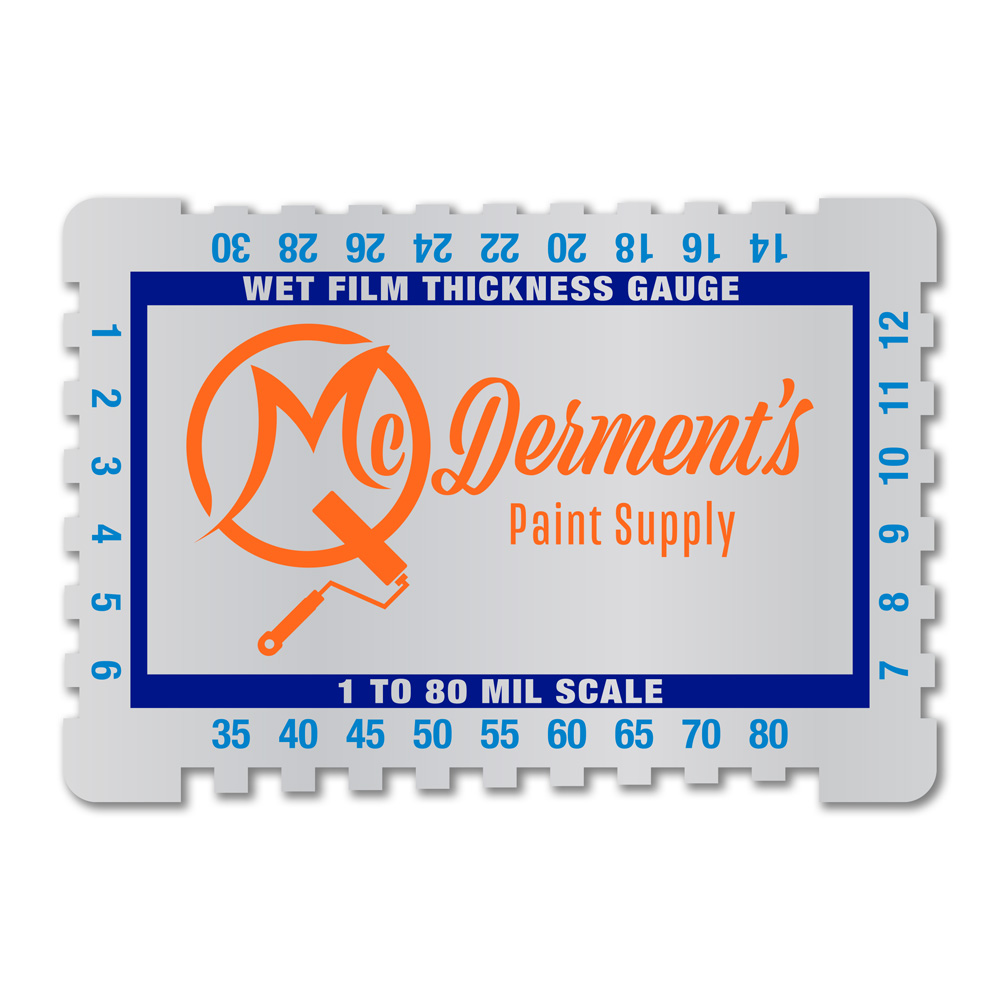

- 2 Sided option includes four color process imprint on front & back

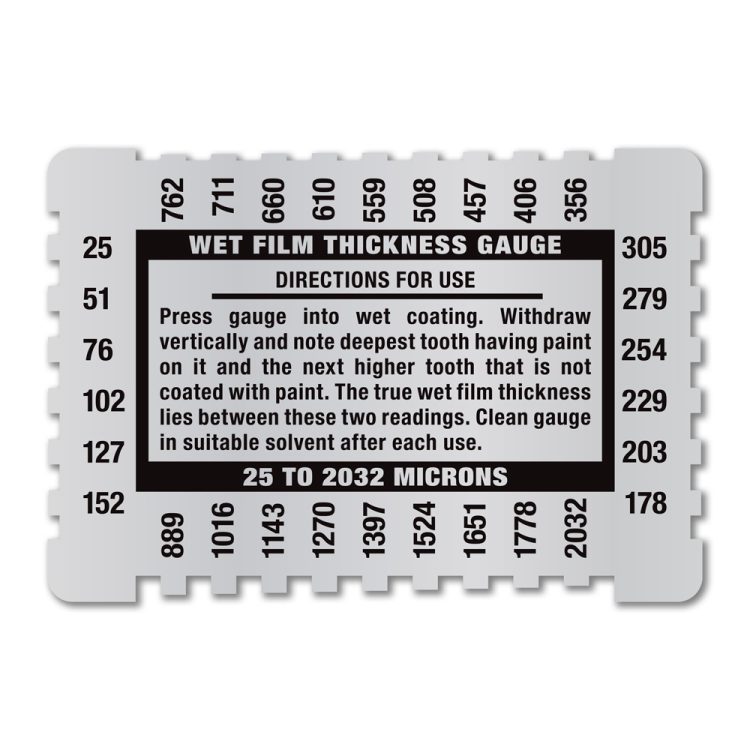

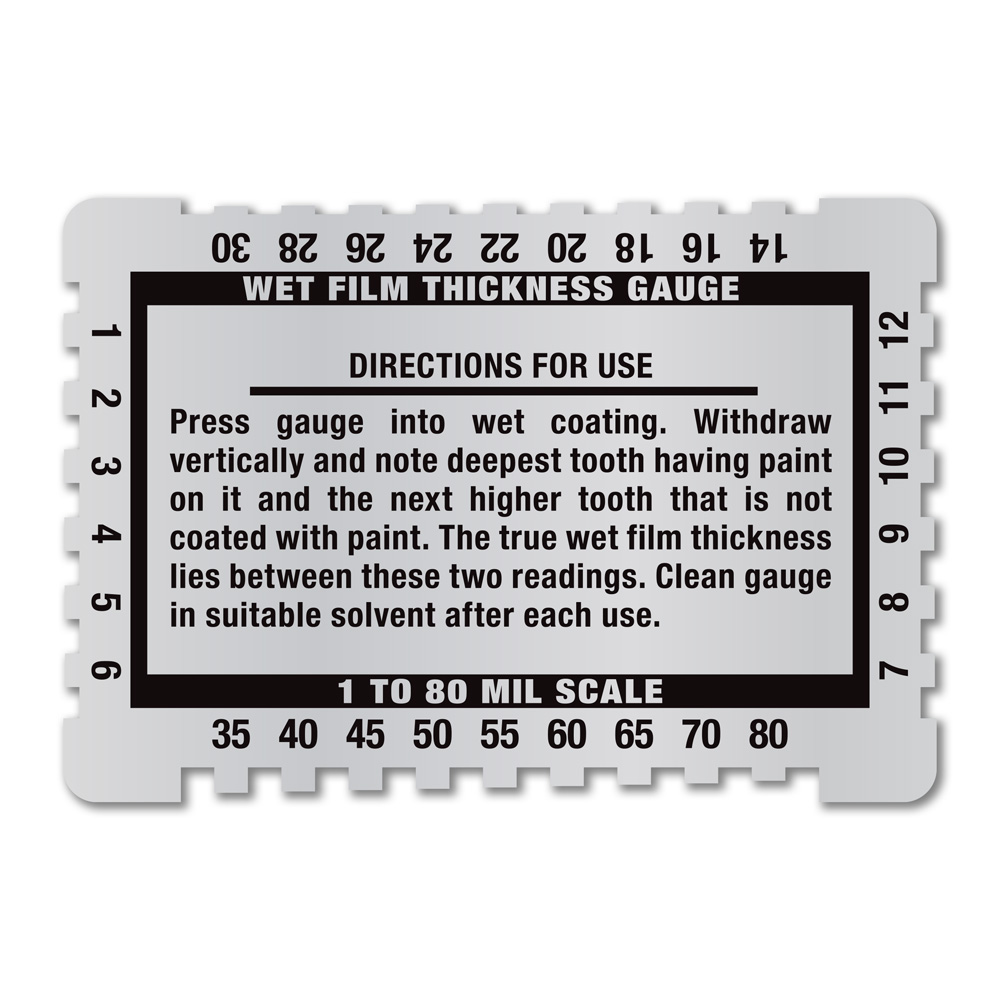

- Optional directions for use available
- Approximate PMS match
Product Details
- Material: .032″ Silver or White Aluminum
- Imprint Method: Direct UV Ink, 4CP, 1 or 2 Sides
- Size: 3.25″ x 2.25″
- Imprint Area: Mil: 2.625″ x 1.375″; Micron: 2.25″ x 1″
- Production: 14-20 Working Days, Made-To-Order
- Weight & Packaging: Bulk Packed, 0.025 lbs Per Piece, 7″x7″x10″ Box, Up to 1,000 pcs Per Box
- FOB: 06025, Shipping Estimated by Weight. Click Here to Estimate Shipping via UPS.
- Orders Ship Complete +/- 10%
- Made in the USA
Description
Our most popular gauge used in the construction supply, industrial coating, waterproofing, fireproofing, roofing, resin, enamel, lacquer, sealant and paint industries. The 3.25″ x 2.25″ x .032″ four color process aluminum wet film thickness gauge measures liquid paint, coating or membrane thickness applied wet to various surfaces by pressing the notched gauge into the wet coating ensuring it meets specifications before drying. Measuring wet film thickness is crucial to prevent defects caused by too much wet film (long drying times, sagging) or too little wet film (poor coverage, failure to protect). This practical tool doubles as a memorable business card – one people will actually keep and use, not toss aside or misplace.
Offered imprinted 1 sided with no scales or custom imprint on back or 2 sided with scales and custom imprint on both sides, measuring 1-80 Mils and/or 25-2032 Microns. Standard pricing includes full color imprint on 1 side with no scales or imprint on the back. Directions for use can be incorporated. Our 4CP imprint process prints directly on the surface of anodized or coated aluminum using UV cured inks. This process allows for a durable multi-color CMYK imprint, including white & approximate PMS matches in one low cost. To enhance the durability the imprint is lacquered, temporarily resisting solvents with proper cleaning. Looking for a solvent-resistant imprint? Check out our durable WF1300MP Metalphoto® process.
We are sourced and manufactured within the US and there are no port delays, customs delays or additional tariffs domestically.
Art Template
Other Products
- Available in solvent resistant Metalphoto® or PolyColor imprint method (WF1300MP)
- Available measuring 8-250 Mils or 203-6350 Microns (WF1301)
- Available measuring 0.4-400 Mils or 10-10,160 Microns (WF1302)
- Available measuring 6-30 Mils or 152-762 Microns (WF1400)
- Available measuring 12-30 Mils & laminate thickness in inches or 305-762 Microns & laminate thickness in MM (WF1500)
